PIKN Wireline Grab

Show video

Application

PIKN wireline grab externally engages and retrieves electric wirelines during fishing in a wellbore.

Design

Rugged design of the grab allows for recovery of wireline from the wellbore.

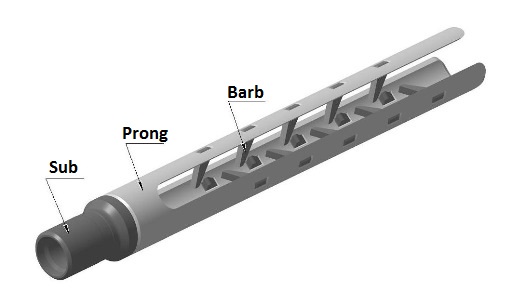

Barbs arranged along prongs and descending in size ensure engagement of tightly tangled wireline. Increased number of barbs allows for higher loads during retrieval. The bottom end of the prongs is tapered to enter tightly tangled wireline.

The grab has ports for circulation at the top sub.

BITTEKHNIKA, whose policy is one of continuous improvement, reserves the right to discontinue or change designs and specifications without notice or written incurring obligations. Therefore, the below figures are meant to serve as a guide only. Additional sizes are available. For a complete listing, contact us: sales@bittekhnika.ru.

Images and Dimensions

Technical data

To cart	Code	Sub OD, in	Total length, ft	Top connection, compatible with API	Max load capacity, lbf	Barbs, pc	Weight, lb
	PIKN-56	2.20	3.21	1AMMT	11 240	12	13.23
	PIKN-114	4.49	3.95	NC 31	89 900	12	66.14
	PIKN-121	4.76	3.51	2 7/8 Reg	134 800	15	57.32
	PIKN-133	5.23	3.61	NC 31	150 600	12	79.36
	PIKN-203	7.99	3.71	NC 38	168 600	12	143.3

You can specify the size of an item on the checkout page.
