Application

PM mechanical junk basket is designed to engage and retrieve rock bit cones, bearings, broken slips, bits of wireline, various hand tool, slivers, debris from twisted-off drill string off the bottom hole.

Design

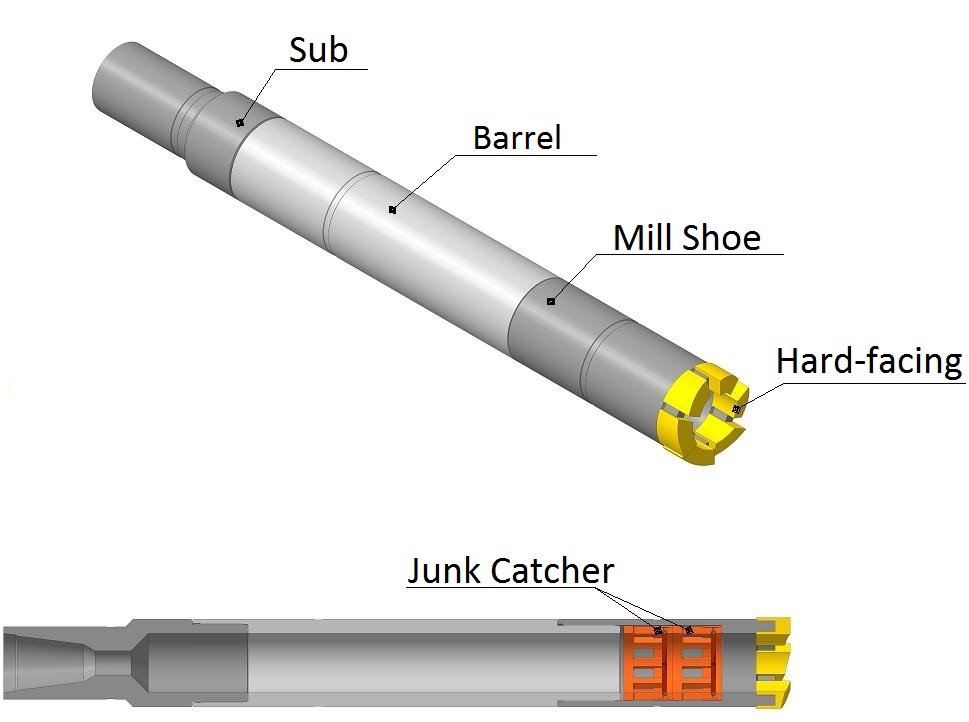

The mechanical junk basket consists of a barrel, made of high-strength alloy steel, sub, two mechanical finger-type catchers and washover mill shoe.

The catchers are double-decked in the lower part of the body with capability of rotation. The catcher is furnished with alternating long and short fingers, drawn to the center of the catcher. The catcher acts as a check valve, letting the core and small metal debris inside the catcher by deflecting spring-driven pivoted fingers upwards and blocking their way out of the catcher.

The junk basket is available in right- and left-hand configurations, depending on direction of the thread connection.

Images and Dimensions
Technical data
To cart Code Body OD,
in
Milling cone OD,
in
Milling cone ID,
in
Total length,
ft
Max torque, lbf.ft Weight, lb
PM-95 3-5/8 3-11/16 2-5/16 3.28 2 213 44.09
PM-112 4,0 4-7/16 2-1/2 3.87 2 213 66.14
PM-119 4-1/2 4-1/2 2-15/16 3.87 2 213 88.18
PM-136 5-1/8 5-3/8 3-9/16 4.07 5 900 138.5
PM-150 5-3/4 5-15/16 4-1/4 4.26 5 900 154.3
PM-196 7-1/4 7-5/8 4-15/16 5.24 8 113 187.4
PM-206 7-1/2 8-1/8 5-1/16 4.92 10 330 220.5
PM-257 9-3/4 10-1/8 6-1/2 5.24 14 750 264.6
PM-265 9-15/16 10-7/16 6-11/16 5.9 14 750 297.6
PM-286 9-5/16 11-1/4 7-1/2 6.23 14 750 330.7
