PG hydraulic junk basket with reverse circulation retrieves bit cones and bearings, broken slips, bits of wire line, various hand tools, slivers and debris from twisted-off drill strings, milling cuttings.

Design

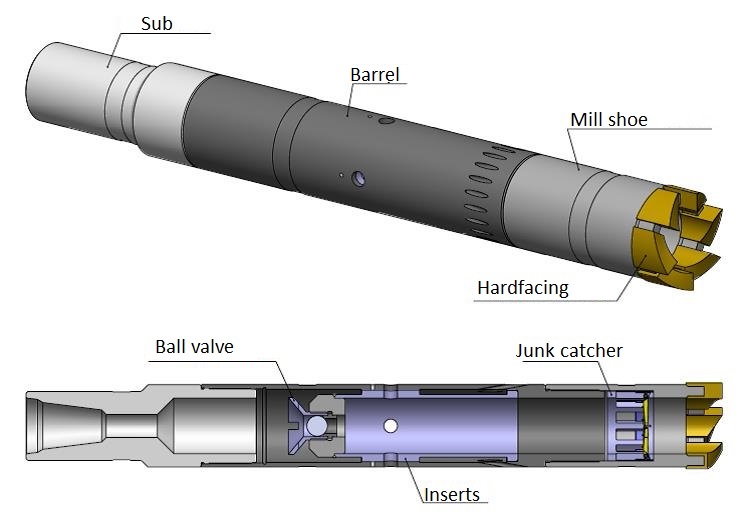

Hydraulic junk basket is connected to the string with the top sub. Apart from the top sub, the assembly includes body with a valve seat, a valve cup, a catcher and a mill shoe. The catcher is made of manganese bronze, furnished with alternating and long and short “fingers”, extended to the center of the tool.

The ball for activation of reverse circulation resides in special container in the top sub.

Hydraulic junk basket is available in right- and left-hand configurations, depending on thread direction, with several options of annular mill shoe, depending on abrasive-crushing welds-on – flat-bottom, wavy, geared, side wings.

BITTEKHNIKA, whose policy is one of continuous improvement, reserves the right to discontinue or change designs and specifications without notice or written incurring obligations. Therefore, the below figures are meant to serve as a guide only. Additional sizes are available. For a complete listing, contact us: sales@bittekhnika.ru

Images and Dimensions
Technical data
To cart Code Body OD,
in
Max D of
caught pieces,in
Total length,
ft
Top connection,
compatible with API
Max torque, lbf.ft
PG-94 3-5/8 2-5/16 3.92 NC 26 2 213
PG-112 4,0 2-1/2 3.83 2-7/8 Reg 2 213
PG-119 4-1/2 2-15/16 3.83 2-7/8 Reg 2 213
PG-130 5,0 2-5/16 4.0 NC 38 5 900
PG-136 5-1/8 3-9/16 3.83 3-1/2 Reg 5 900
PG-146 5-1/2 4,0 3.83 2-3/8 IF 5 900
PG-150 5-3/4 4-1/4 3.83 3-1/2 Reg 5 900
PG-196 7-1/4 4-3/4 4.83 NC 50 8 113
PG-206 7-1/2 5-1/16 4.83 NC 50 10 330
PG-257 9-3/4 6-5/8 6.17 NC 50 14 750
PG-265 9-15/16 6-11/16 6.17 4-1/2 IF 14 750
PG-286 10-3/4 7-1/2 6.17 NC 50 14 750
PG-340 13,0 9-5/8 6.25 6-5/8 Reg 14 750
