TLV Nonreleasable Spear

Full specifications

Application

Run on coiled tubing, TLV spear retrieves fish from a wellbore.

Design

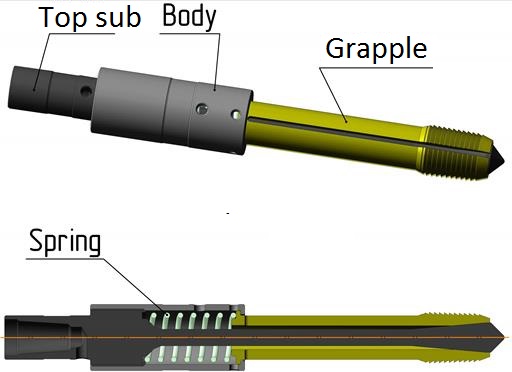

The spear consists of a top sub, a body, a grapple and a spring. Grapple OD has buttress fishing thread. The top sub has thread to connect to the fishing string.
The body is connected to the sub with pipe thread. The tool body has no watercourse. The tool communicates with the annulus through a port in the top sub.

Images and Dimensions

Technical data

To cart	Code	ID of caught pipes, in	Body OD, in	Total length, ft	Load capacity, lbf	Connecting thread	Weight, lb
	TLV-1-60	1.57 - 1.81	4.84	1.5	26 980	1'' AMMT	9.04

You can specify the size of an item on the checkout page.
