TLNT Releasable Overshot

Show video

Application

TLNT releasable overshot is designed to engage and retrieve tubular fish from a wellbore.

Design

TLNT is used in severe environment.
Accessories available for the releasable overshot:

extension 500…1000 mm long;
guides with increased diameter;
limiting sleeves.

To pack off connection between the overshot and a fishing string, packers are available upon request.
Releasable overshot is available in left/right hand configuration.

All sizes are for reference only.

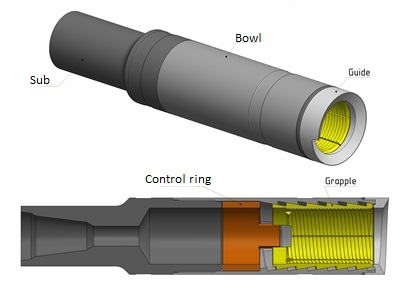

Images and Dimensions

Technical data

To cart	Code	OD, in	Total length, ft	Top connection, compatible with API	Max load capacity, lbf	Spiral grapple catch range, in	Basket grapple catch range, in	Weight, lb
	TLNT-90	3.56	1.84	NC26	215 816	2 1/2 - 2 3/4	1 1/2 - 2 3/8	26.45
	TLNT-124	4.88	2.82	2 7/8 Reg	388 900	3 1/2 - 3 3/4	2 1/8 - 3 3/8	80.22
	TLNT-140	5.51	2.89	2 7/8 Reg	442 800	4.0 - 4 3/8	2 5/8 - 3 3/4	91.6
	TLNT-156	6.14	3.06	3 1/2 Reg	494 500	4 1/4 - 4 13/16	2 3/8 - 4 1/8	92.59
	TLNT-175	6.89	3.46	NC 50	730 600	4 3/4 - 5 3/8	2 7/8 - 4 5/8	105.8
	TLNT-194	7.64	3.75	5 1/2 FH	741 800	5 3/8 - 6.0	3 3/8 - 5 1/4	125.7
	TLNT-206	8.12	3.64	5 1/2 FH	899 200	5 7/8 - 6 1/2	3 5/8 - 5 3/4	259.66
	TLNT-220	8.64	4.13	5 1/2 FH	944 197	6 3/8 - 7.0	4 1/8 - 6 1/4	286.6
